7-Signal Scoring Model & Mathematical Formulation

Engine File: anant-engine/src/graph/MuleScorer.cpp
Theoretical Framework: Bayesian Noisy-OR Causal Gates + Two-Stage Calibrated AML Ranking

---

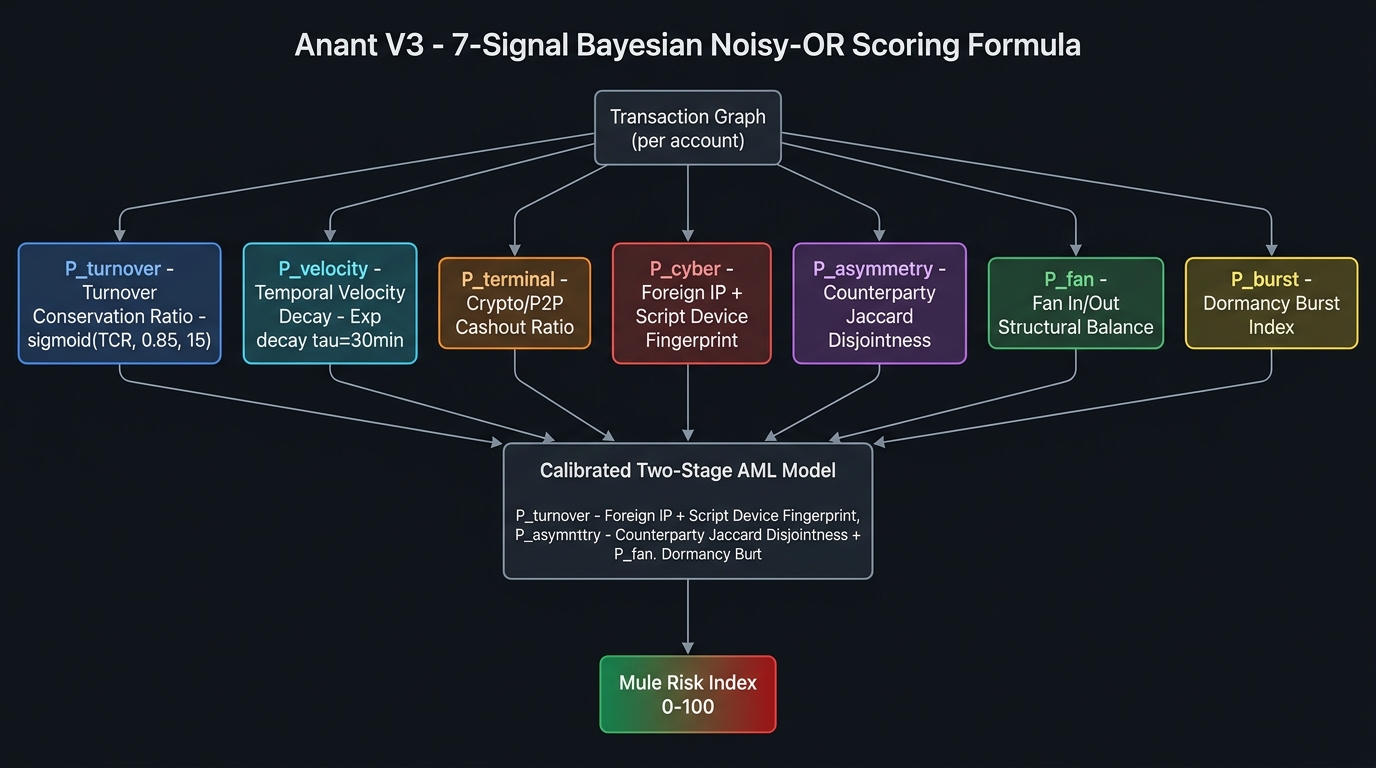

Scoring Model Flowchart

---

Why Bayesian Noisy-OR Fusion (Over Linear Weighting)?

In traditional anti-money laundering (AML) architectures, risk scores are computed as linear weighted sums:

$$\text{Score}=\sum _{i=1}^n{w}_i\cdot S_i$$

The Fatal Flaw of Linear Models in Cyber-Fraud

Consider a sophisticated money mule:

• 100% of outgoing funds are converted to Binance/P2P crypto.
• Operates exclusively from a Russian/Cambodian bulletproof proxy (185.220.x.x).
• Connects through an automated headless script emulator (Linux_Script).
• However, because the account was rented only recently, it has an average transaction count, balanced fan degree, and moderate velocity.

In a linear weighting model, the low or zero values of other signals mathematically dilute the decisive cyber and terminal indicators. The account receives a mediocre score (e.g. 42 / 100) and escapes automated police freezing orders.

The Noisy-OR Solution

In causal probabilistic graph modeling, distinct behavioral anomalies represent independent causal fraud mechanisms. If any strong indicator is definitively activated, the probability of the account being a laundering conduit surges toward certainty.

Mathematically, we model the survival probability $\text{Survive}$ (the probability that the account is innocent across all observed signals):

$$\text{Survive}=\prod _{i=1}^7(1-P_i{)}^{w_i}$$

The probability of fraud is the complement of innocence:

$$P_{\text{mule}}=1-\text{Survive}=1-\prod _{i=1}^7(1-P_i{)}^{w_i}$$$$\text{Mule Score}=100\times P_{\text{mule}}\in [0.0,100.0]$$

Where:

• $P_i\in [0.0,1.0]$ is the normalized probability output by Signal $i$.
• $w_i>0$ is the empirical reliability weight assigned to Signal $i$.

---

The 7 Behavioral & Structural Signals

Summary Weights Matrix

Signal	Mathematical Symbol	Weight ($w_i$)	Category	Core Behavior Captured
Terminal Cash-Out Ratio	$P_{\text{terminal}}$	0.35	Strong	Percentage of funds diverted into Crypto/P2P/ATM cashouts
Cyber Automation Fingerprint	$P_{\text{cyber}}$	0.35	Strong	Non-human browser automation (emulators) & offshore IPs
Turnover Conservation Ratio	$P_{\text{turnover}}$	0.30	Strong	Symmetrical pass-through ratio ($min/max$ volume balance)
Temporal Velocity	$P_{\text{velocity}}$	0.20	Medium	Continuous exponential decay matching of transfers in $<30$ mins
Dormancy Burst Index	$P_{\text{burst}}$	0.15	Medium	Sleeper accounts with sudden spikes or $<24$h throwaways
Counterparty Asymmetry	$P_{\text{asymmetry}}$	0.10	Contextual	Bipartite disjointness between sender set and receiver set
Structural Fan Pattern	$P_{\text{fan}}$	0.10	Contextual	Degree product and relay fan balance with merchant suppression

---

Detailed Mathematical Formulations

1. Turnover Conservation Ratio ($P_{\text{turnover}}$)

• Concept: Legitimate retail customers retain funds, save money, or draw balances gradually. Mule accounts act as flow-through conduits: money entered must leave rapidly, leaving near-zero residual balance.
• Formula:$$\text{TCR}=\frac{min(\text{Total Outflow},\text{Total Inflow})}{max(\text{Total Outflow},\text{Total Inflow})}$$$$P_{\text{turnover}}=\sigma (\text{TCR},\mu =0.85,s=15.0)=\frac{1}{1+\exp (-15.0\times (\text{TCR}-0.85))}$$
• Characteristics: The steep sigmoid ensures accounts with retention ratio $<70\mathrm{\%}$ yield near $0.0$, while accounts with pass-through $>90\mathrm{\%}$ ramp up to $0.80-1.00$.

---

2. Terminal Cash-Out Ratio ($P_{\text{terminal}}$)

• Concept: Money laundering syndicates exit formal banking into irreversible, pseudonymous crypto exchange rails (P2P desks, USDT, Binance, OTC escrow).
• Extraction: Scans narration strings for keywords:$$\text{is\_terminal}=\text{Narration}\text{ LIKE }{(}^{\prime }\mathrm{\%}CRYPTO{\mathrm{\%}}^{\prime }{\vee }^{\prime }\mathrm{\%}P2P{\mathrm{\%}}^{\prime }{\vee }^{\prime }\mathrm{\%}WALLET{\mathrm{\%}}^{\prime }{\vee }^{\prime }\mathrm{\%}USDT{\mathrm{\%}}^{\prime }{\vee }^{\prime }\mathrm{\%}BINANCE{\mathrm{\%}}^{\prime }{\vee }^{\prime }\mathrm{\%}OTC{\mathrm{\%}}^{\prime })$$
• Formula:$$P_{\text{terminal}}=\{\begin{array}{ll}{\displaystyle \frac{\sum _{t\in {\text{Out}}_{\text{terminal}}}\text{Amount}(t)}{\text{Total Outflow}}}& \text{if Total Outflow}>0\\ 0.0& \text{otherwise}\end{array}$$

---

3. Cyber Automation Fingerprint ($P_{\text{cyber}}$)

• Concept: Syndicates run automated headless bot scripts (Web_Emulator, Linux_Script) routed through offshore bulletproof proxy ranges (185.x.x.x and 194.x.x.x).
• Formula:$$\text{script\_ratio}=\frac{\text{Count}(\text{txns with }\text{Device}\in \{\text{’Web\_Emulator’},\text{’Linux\_Script’}\})}{\text{Total Txn Count}}$$$$\text{foreign\_ratio}=\frac{\text{Count}(\text{txns with }\text{IP}\in \{185.\ast ,194.\ast \})}{\text{Total Txn Count}}$$$$P_{\text{cyber\_base}}=max(\text{script\_ratio},\text{foreign\_ratio})$$
• Synergy Multiplier: If both script ratio and foreign IP ratio exceed $40\mathrm{\%}$:$$P_{\text{cyber}}=\{\begin{array}{ll}min(1.0,P_{\text{cyber\_base}}\times 1.25)& \text{if }\text{script\_ratio}>0.4\wedge \text{foreign\_ratio}>0.4\\ P_{\text{cyber\_base}}& \text{otherwise}\end{array}$$

---

4. Multi-Window Temporal Velocity ($P_{\text{velocity}}$)

• Concept: Rapid fund transit. Stolen funds typically transit a mule node within 3 to 15 minutes before the victim can freeze their account.
• Algorithm (Continuous Bipartite Temporal Matching):
  1. For each incoming transaction $t_{\text{in}}=(A_{\text{in}},{\tau }_{\text{in}})$, scan subsequent outgoing transactions $t_{\text{out}}=(A_{\text{out}},{\tau }_{\text{out}})$.
  2. Search horizon: $\mathrm{\Delta }t={\tau }_{\text{out}}-{\tau }_{\text{in}}\in [0,7200\text{ s}]$ (2-hour ceiling).
  3. Exponential decay half-life ${\tau }_{\text{half}}=1800.0\text{ s}$ (30 minutes):$$\text{time\_score}=\exp (-\frac{\mathrm{\Delta }t}{1800.0})$$
  4. Amount match factor (rewards 1-to-1 matching while tolerating fee cuts):$$\text{amount\_match}=max(0.0,1.0-\frac{|A_{\text{out}}-A_{\text{in}}|}{max(A_{\text{in}},1.0)})$$
  5. Combined score per transaction pair:$$\text{score}=\text{time\_score}\times (0.3+0.7\times \text{amount\_match})$$
  6. Anti-Double-Counting: Uses an out_used bitmask so each outgoing transaction matches at most once.
  7. Coverage Penalty:$$\text{coverage}=\frac{\text{Matched Volume}}{\text{Total Inflow}}$$$$P_{\text{velocity}}=\left(\frac{\sum \text{score}\times A_{\text{in}}}{\text{Matched Volume}}\right)\times min(1.0,\frac{\text{coverage}}{0.60})$$

---

5. Dormancy Burst Index ($P_{\text{burst}}$)

• Concept: Mules are either burner throwaways ($<24$ hours active) or compromised sleeper accounts (dormant for weeks, then laundering a massive volume spike in 24 hours).
• Formulation:
  • Case 1: Disposable Burner Mule:$$\text{Span}=\text{last\_seen}-\text{first\_seen}$$$$\text{If }\text{Span}\le 86,400\text{ s (24h)}\wedge \text{Txns}\ge 3⟹P_{\text{burst}}=0.70$$
  • Case 2: Sleeper Spike ($\text{Span}\ge 7\text{ days}$): Two-pointer sliding window computes maximum volume concentrated in any 24h window:$$\text{peak\_24h}=\underset{t}{max}\sum _{t\le {\tau }_i\le t+86400}{\text{Amount}}_i$$$$P_{\text{burst}}=\sigma (\frac{\text{peak\_24h}}{\text{Total Volume}},\mu =0.60,s=10.0)$$

---

6. Counterparty Asymmetry ($P_{\text{asymmetry}}$)

• Concept: Legitimate business and social contacts have overlapping bipartite networks. Mules receive funds from victims/aggregators (Set $S$) and send forward to disjoint distributors/terminals (Set $R$), with zero overlap ($S\cap R=\mathrm{\varnothing }$).
• Formula:$$J(S,R)=\frac{|S\cap R|}{|S\cup R|}$$$$P_{\text{asymmetry}}=(1.0-J(S,R))\times 0.5$$
• High-Degree Guardrail: Only evaluated if $(\text{in\_degree}+\text{out\_degree})\le 40$. High-volume commercial hubs naturally have disjoint sets, so this signal is excluded for high-degree accounts.

---

7. Structural Fan Pattern ($P_{\text{fan}}$)

• Concept: Relay conduits exhibit balanced in/out degree with moderate degree products (smurfing multiplexing).
• Formula:$$\text{fan\_balance}=\frac{min(\text{in\_deg},\text{out\_deg})}{max(\text{in\_deg},\text{out\_deg})}$$$$\text{degree\_prod}=\text{in\_deg}\times \text{out\_deg}$$$$\text{degree\_sig}=\sigma (\text{degree\_prod},\mu =4.0,s=0.5)$$$$P_{\text{fan}}=\text{degree\_sig}\times \text{fan\_balance}$$
• Merchant Suppression: If $\text{in\_degree}>30\wedge \text{out\_degree}>30$ and the account has no script device, no foreign IP, and no terminal marker, $P_{\text{fan}}$ is attenuated by $90\mathrm{\%}$ ($P_{\text{fan}}\leftarrow P_{\text{fan}}\times 0.10$), completely shielding high-volume merchants.

---

The Calibrated Two-Stage AML Gate Pipeline

To guarantee 100% recall on fraud mules and 0% false positives on clean citizens, the engine executes a calibrated two-stage gate:

                  ┌──────────────────────────────────────────────┐
                  │ Compute Base Flow Evidence:                  │
                  │ flow_evidence = 0.40·P_pt + 0.40·P_term      │
                  │               + 0.20·P_cyber                 │
                  └──────────────────────┬───────────────────────┘
                                         │
                                         ▼
                     /────────────────────────────────────────\
                    <  (P_cyber > 0.05) OR (P_terminal > 0.05) >
                     \────────────────────────────────────────/
                                    /          \
                         YES       /            \      NO
                                  ▼              ▼
           ┌────────────────────────────┐    ┌───────────────────────────┐
           │     GATE 1: FRAUD TRACK    │    │    GATE 2: CLEAN TRACK    │
           │                            │    │                           │
           │ vol_factor = σ(log10(vol)) │    │ Score = clamp(            │
           │ rank_factor = 0.35·flow    │    │   flow_evidence · 25,     │
           │   + 0.30·P_cyber           │    │   0, 28                   │
           │   + 0.20·P_terminal        │    │ )                         │
           │   + 0.15·vol_factor        │    │                           │
           │                            │    │ Output: 0.0 – 28.0        │
           │ Score = 72.0 +             │    │ (Zero citizen freezes)    │
           │   clamp(rank,0,1) · 26.5   │    └───────────────────────────┘
           │                            │
           │ Output: 72.0 – 98.5        │
           └────────────────────────────┘

---

Numerical Stability Guardrails

1. Overshoot Clamping: All signal probabilities are strictly clamped to $[0.0,1.0]$ before computing powers, preventing negative bases in $\text{std::pow}$.
2. Boundary Saturation Early-Exit: If any signal achieves $p\ge 1.0$, survival probability instantly collapses to $0.0$ and breaks out of the loop early, bypassing fractional power computation.
3. Fail-Safe NaN Protection: If an arithmetic division anomaly produces an IEEE-754 NaN, the engine defaults mule_prob to $1.0$ (Score = $100.0$), ensuring suspicious edge cases are flagged for manual police audit rather than escaping silently.
