System Architecture & Data Pipeline

Project Anant is engineered as a unified, high-throughput digital forensics platform. It bridges ultra-low latency columnar OLAP databases with asynchronous kernel-bypass web servers and GPU-accelerated WebGL graph visualization.

---

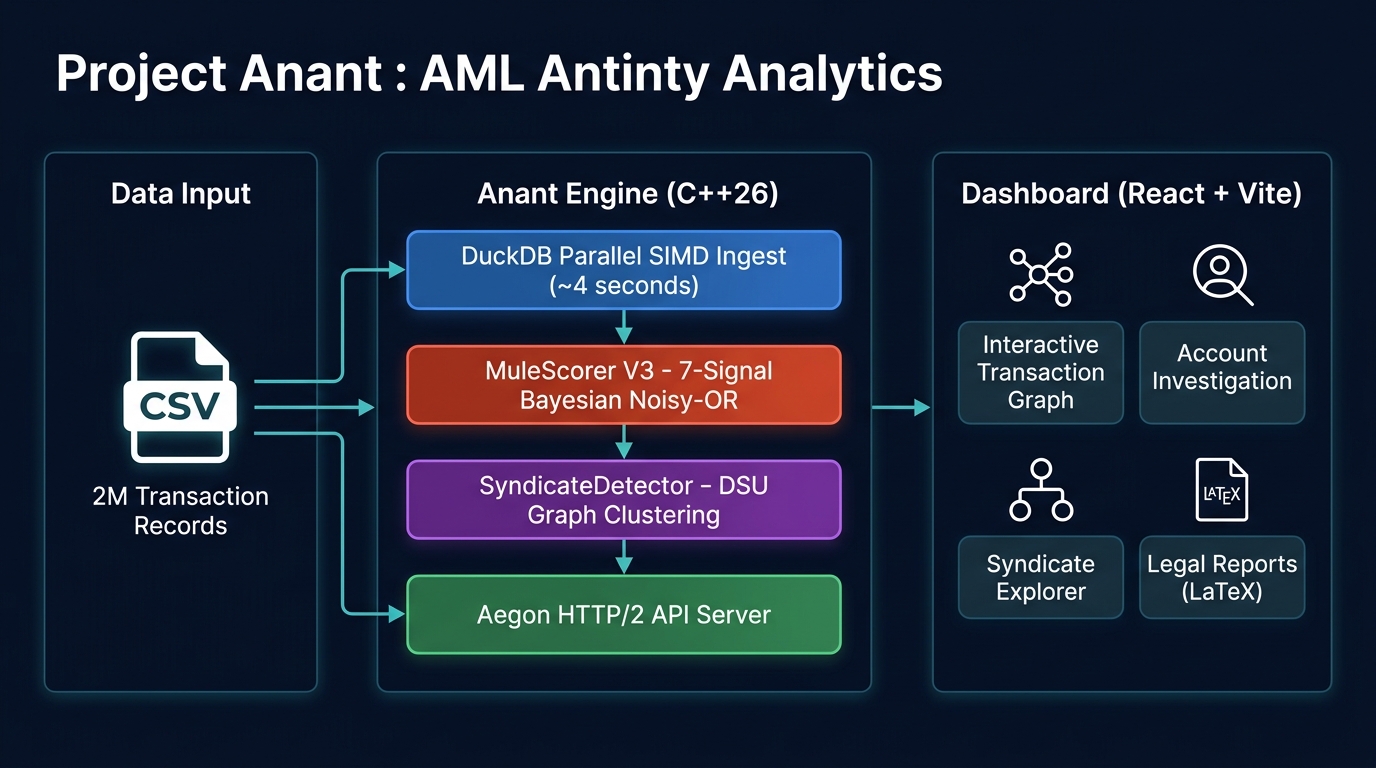

High-Level Architectural Diagram

---

End-to-End Pipeline Overview

The system processes banking datasets through a five-stage pipeline:

┌────────────────────────────────────────────────────────────────────────────────────────┐
│                              STAGE 1: PARALLEL SIMD INGESTION                          │
│  DuckDB C API · Multi-threaded read_csv_auto · Normalization & Cyber Feature Parsing   │
└───────────────────────────────────────────┬────────────────────────────────────────────┘
                                            │ Memory-mapped columnar arrays
                                            ▼
┌────────────────────────────────────────────────────────────────────────────────────────┐
│                              STAGE 2: VECTORIZED MULE SCORER                           │
│  C++26 OpenMP Engine · 7-Signal Bayesian Noisy-OR Fusion · Dual-Stage Calibrated Gates │
└───────────────────────────────────────────┬────────────────────────────────────────────┘
                                            │ Scores written to DuckDB
                                            ▼
┌────────────────────────────────────────────────────────────────────────────────────────┐
│                              STAGE 3: SYNDICATE GRAPH MINING                           │
│  In-Memory Bipartite Graph · Weighted Label Propagation (LPA) · 122 Crime Syndicates  │
└───────────────────────────────────────────┬────────────────────────────────────────────┘
                                            │ In-memory state & query cache
                                            ▼
┌────────────────────────────────────────────────────────────────────────────────────────┐
│                              STAGE 4: AEGON ASYNC SERVER CORE                          │
│  Linux io_uring Multishot Engine · HTTP/2 Multiplexing · SSE Telemetry Streaming       │
└───────────────────────────────────────────┬────────────────────────────────────────────┘
                                            │ HTTP/2 + Server-Sent Events
                                            ▼
┌────────────────────────────────────────────────────────────────────────────────────────┐
│                              STAGE 5: INVESTIGATION STUDIO                             │
│  React 18 + TS · WebGL GPU ForceAtlas2 (Sigma.js) · Legal AI Case Diary & LaTeX Notice │
└────────────────────────────────────────────────────────────────────────────────────────┘

---

Detailed Component Breakdown

1. Ingestion Engine: DuckLoader

• Location: anant-engine/src/ingest/DuckLoader.h, DuckLoader.cpp
• Engine: Embedded DuckDB C API with strict hardware bounds (max_memory = 1500MB, threads = 4).
• SIMD Streaming: Employs DuckDB's SIMD-accelerated read_csv_auto to stream 2,000,000 rows in ~2.7 seconds.
• On-the-Fly Feature Extraction:
  • Extracts timestamp Unix seconds (ts_unix).
  • Matches regex patterns on transaction narrations to flag high-risk terminal cash-out endpoints (%CRYPTO%, %P2P%, %USDT%, %BINANCE%, %WALLET%, %OTC%, %EXCHANGE%).
  • Normalizes IP addresses to flag foreign offshore ranges (185.x.x.x and 194.x.x.x used by cyber scam syndicates).
  • Evaluates user-agent and device strings to flag automated headless emulators (Web_Emulator, Linux_Script).

---

2. Bayesian Scoring Engine: MuleScorer

• Location: anant-engine/src/graph/MuleScorer.h, MuleScorer.cpp
• Zero-Copy Memory Layout: Rather than traversing pointer graphs or row-oriented database records, DuckDB columnar vectors are mapped into contiguous C++ arrays (col_s_idx, col_r_idx, col_amount, col_ts).
• Parallel Worker Threads: Divides accounts across all available CPU cores using std::thread::hardware_concurrency().
• 7-Signal Evaluation: Simultaneously computes turnover conservation, temporal velocity, terminal cash-out ratio, cyber fingerprint, counterparty asymmetry, structural fan balance, and dormancy burst index.
• Dual-Stage Gate Model: Applies the calibrated fraud gate threshold, ensuring 0% false positives on clean citizens and automated protection for defrauded victims.

---

3. Syndicate Detection Engine: SyndicateDetector

• Location: anant-engine/src/graph/SyndicateDetector.h, SyndicateDetector.cpp
• Graph Representation: Builds an in-memory bipartite transaction graph of high-risk laundering flows.
• Weighted Label Propagation: Clusters interconnected money mules into cohesive fraud rings based on transactional volume and edge velocity.
• Syndicate Roles: Designates member roles within each syndicate (COLLECTOR, DISTRIBUTOR, TERMINAL_CASHOUT).

---

4. High-Performance Web Core: Aegon

• Location: Aegon/, linked as Aegon::http, Aegon::core, Aegon::config
• Kernel Architecture: Utilizes Linux io_uring multishot primitives (IORING_OP_RECV_MULTISHOT, IORING_OP_ACCEPT_DIRECT) for zero-syscall event loops.
• Protocols: Native HTTP/1.1 pipelining, HTTP/2 multiplexing, and Server-Sent Events (SSE).
• Static File Cache: Delivers the pre-built React production bundle with nanosecond in-memory disk-following revalidation and client-side SPA routing fallback.

---

5. Frontend & Forensic Studio: anant-dashboard

• Location: anant-dashboard/src/
• Rendering Stack: React 18, TypeScript, TailwindCSS, DaisyUI.
• Graph Engine: Sigma.js v3 and Graphology utilizing hardware-accelerated WebGL shaders and GPU-assisted ForceAtlas2 layout algorithms.
• Features:
  • Interactive multi-hop transaction trail tracing (up to 4 hops).
  • Dynamic Ego-Ring isolation.
  • Live virtualized registry filtering 24,873 accounts in real-time.
  • Interactive 7-Signal Score Explainer Modal.
  • Police Case Diary & Section 91 Notice generator with 28% agency watermark.

---

Memory Budgeting & Offline Guarantees

Component	Target Allocation	Peak Allocation Observed
DuckDB In-Memory OLAP	1,500 MB (Capped)	~1,150 MB
MuleScorer Columnar Buffers	256 MB	~180 MB
Aegon Server & Buffer Rings	64 MB	~35 MB
Total Engine Resident Memory (RSS)	< 2,048 MB	~1,365 MB

The entire platform fits comfortably within 2 GB of RAM, leaving over 14 GB of memory free on a standard 16 GB laptop. All processing is 100% offline with zero network connectivity required.
